Product features:
· To support multiple communication protocol
· A maximum of 15 batteries can be connected in parallel
· High-performance intelligent battery management system,more accurate data,more comprehensive protection.
· Long cycle life.
· It can be used with hybrid inverters to support multi-brand inverter communication

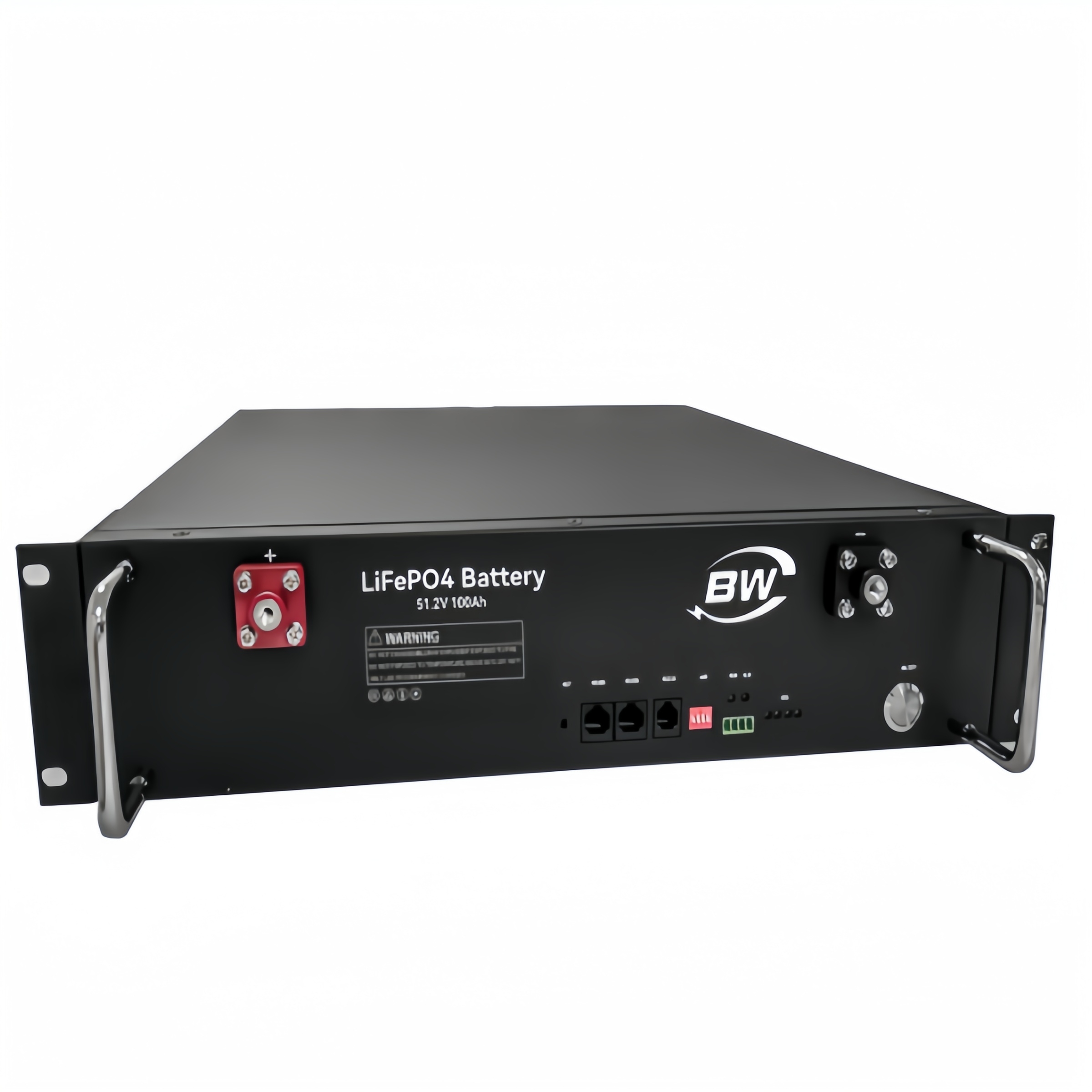

51.2V100Ah Rack-Storage Battery
l 3 Year Warranty
l Genuine 100% Useable Capacity
l 100A High Output BMS
l Lifetime Technical Support
l Approved UN38.3,MSDS,IEC62619,DG
l Are suitable for use under AS/NZS:3001.2:2022
Specification
|
Parameter |
Specification |
|
Voltage |
51.2V |
|
Capacity |
100Ah |
|
Size(D*W*H) |
440*442*135mm |
|
Weight |
43.5kg |
|
Self Discharge (Per Month) |
<3% |
|
Max Parallel Connection |
15 |
|
Max Continuous Discharge |
100Amps |
|
Peak Discharge |
300Amps |
|
Recommended Charge Current |
20A |
|
Max Charge Current |
100A |
|
Charge Voltage |
56.8-58.4V |
|
Discharge Cut-Off Voltage
|
44.0V |
|
Discharge Temp |
-20-60℃ |
|
Discharge Temp |
0-50℃ |
|
Cycle Life |
3000 Cycles @80% DOD |
